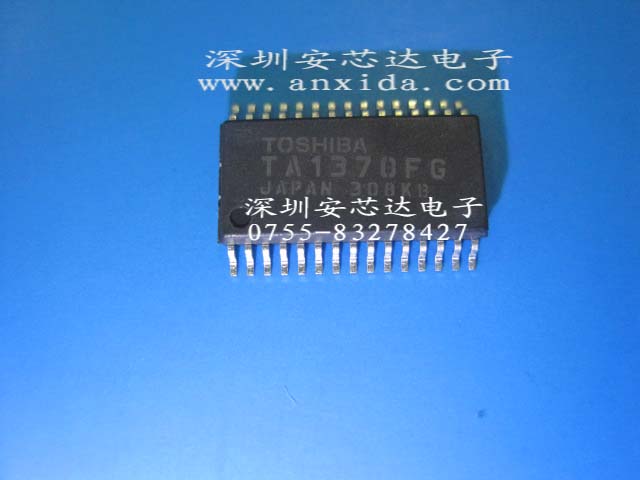

TA1370FG

产品管脚图：

技术参数查看：TA1370FG.PDF

Features
•  Horizontal synchronization circuit (28.125 kHz, 31.5 kHz,
33.75 kHz, 45 kHz)
•  Vertical synchronization circuit (525P, 625P, 750P, 1125I, PAL 100 Hz, NTSC 120 Hz)
•  Horizontal and vertical frequency counter
•  Horizontal PLL
•  Accepts 2-level and 3-level sync
•  Accepts both negative and positive HD and VD
•  Clamp pulse output
•  HD, VD output (polarity inverter)
•  Separated sync output
•  Mask for the copy guard signal

Weight: 0.63 g (typ.)
