MAX2209A

概述

    The MAX2209A is a wideband (800MHz to 2GHz) RF power detector. It takes an RF signal from the directional coupler at the input, and outputs a DC voltage proportional to the RF peak voltage. The change in output voltage versus temperature is very repeatable from part to part and enables a lookup table based on nominal behavior, minimizing the effective detection error to less than ±0.5dB relative to room temperature.

The MAX2209A comes in a space-saving 2 x 2, 0.5mm pitch UCSP™.

关键特性		应用/使用
-25dBm to -5dBm Power Detection Range ±0.5dB Detection Error Due to Temperature +2.7V to +5V Single-Supply Operation Space-Saving 4-Bump, 1mm² UCSP Package Shutdown Control 140ns Step-Response Time		双频WCDMA手机 高速下行链路分组接入(HSDPA) 高速上行链路分组接入(HSUPA)

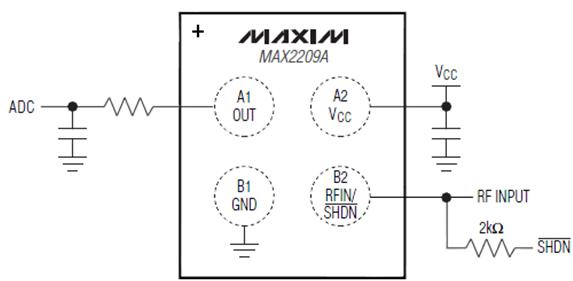

MAX2209A 工作电压电路
