特点
响应速度快(纳秒级)、瞬时吸收功率大(数百至数千瓦)、漏电流小(微安级)、导通电压精度高、箝位电压较易控制、体积小等。它对保护装置免遭静电、雷电、操作过电压、断路器电弧重燃等各种电磁波干扰十分有效，可有效地抑制共模、差模干扰，是微电子设备过电压精细保护的首选器件。

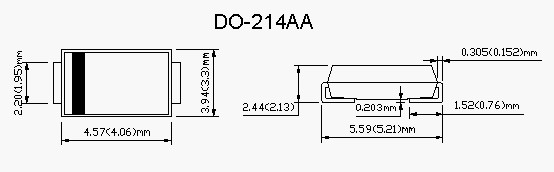

产品尺寸
参数对照表
|
型号 |
关断电压Vrwm(v) |
最小导通电压VBR（V）min@It |
最大导通电压VBR（V）max@It |
测试电流It(mA) |
最大钳位电压Vc(v)@Ipp |
冲击电流 IPP（A） | |
|
单向 |
双向 | ||||||
|
SMBJ5.0A |
SMBJ5.0CA |
5.0 |
6.40 |
7.00 |
10 |
9.2 |
65.3 |
|
SMBJ6.0A |
SMBJ6.0CA |
6.0 |
6.67 |
7.37 |
10 |
10.3 |
58.3 |
|
SMBJ6.5A |
SMBJ6.5CA |
6.5 |
7.22 |
7.98 |
10 |
11.2 |
53.6 |
|
SMBJ7.0A |
SMBJ7.0CA |
7.0 |
7.78 |
8.60 |
10 |
12.0 |
50.0 |
|
SMBJ7.5A |
SMBJ7.5CA |
7.5 |
8.33 |
9.21 |
1 |
12.9 |
46.6 |
|
SMBJ8.0A |
SMBJ8.0CA |
8.0 |
8.89 |
9.83 |
1 |
13.6 |
42.2 |
|
SMBJ8.5A |
SMBJ8.5CA |
8.5 |
9.44 |
10.40 |
1 |
14.4 |
41.7 |
|
SMBJ9.0A |
SMBJ9.0CA |
9.0 |
10.00 |
11.10 |
1 |
15.4 |
39.0 |
|
SMBJ10A |
SMBJ10CA |
10.0 |
11.10 |
12.30 |
1 |
17.0 |
35.3 |
|
SMBJ11A |
SMBJ11CA |
11.0 |
12.20 |
13.50 |
1 |
18.2 |
33.0 |
|
SMBJ12A |
SMBJ12CA |
12.0 |
13.30 |
14.70 |
1 |
19.9 |
30.2 |
|
SMBJ13A |
SMBJ13CA |
13.0 |
14.40 |
15.90 |
1 |
21.5 |
28.0 |
|
SMBJ14A |
SMBJ14CA |
14.0 |
15.60 |
17.20 |
1 |
23.2 |
25.9 |
|
SMBJ15A |
SMBJ15CA |
15.0 |
16.70 |
18.50 |
1 |
24.4 |
24.6 |
|
SMBJ16A |
SMBJ16CA |
16.0 |
17.80 |
19.70 |
1 |
26.0 |
23.1 |
|
SMBJ17A |
SMBJ17CA |
17.0 |
18.90 |
20.90 |
1 |
27.6 |
21.8 |
|
SMBJ18A |
SMBJ18CA |
18.0 |
20.00 |
22.10 |
1 |
29.2 |
20.6 |
|
SMBJ20A |
SMBJ20CA |
20.0 |
22.20 |
24.50 |
1 |
32.4 |
18.6 |
|
SMBJ22A |
SMBJ22CA |
22.0 |
24.40 |
26.90 |
1 |
35.5 |
16.9 |
|
SMBJ24A |
SMBJ24CA |
24.0 |
26.70 |
29.50 |
1 |
38.9 |
15.5 |
|
SMBJ26A |
SMBJ26CA |
26.0 |
28.90 |
31.90 |
1 |
42.1 |
14.3 |
|
SMBJ28A |
SMBJ28CA |
28.0 |
31.10 |
34.40 |
1 |
45.4 |
13.3 |
|
SMBJ30A |
SMBJ30CA |
30.0 |
33.30 |
36.80 |
1 |
48.4 |
12.4 |
|
SMBJ33A |
SMBJ33CA |
33.0 |
36.70 |
40.60 |
1 |
53.3 |
11.3 |
|
SMBJ36A |
SMBJ36CA |
36.0 |
40.00 |
44.20 |
1 |
58.1 |
10.4 |
|
SMBJ40A |
SMBJ40CA |
40.0 |
44.40 |
49.10 |
1 |
64.5 |
9.3 |
|
SMBJ43A |
SMBJ43CA |
43.0 |
47.80 |
52.80 |
1 |
69.4 |
8.7 |
|
SMBJ45A |
SMBJ45CA |
45.0 |
50.00 |
55.30 |
1 |
72.7 |
8.3 |
|
SMBJ48A |
SMBJ48CA |
48.0 |
53.30 |
58.90 |
1 |
77.4 |
7.8 |
|
SMBJ51A |
SMBJ51CA |
51.0 |
56.70 |
62.70 |
1 |
82.4 |
7.3 |
|
SMBJ54A |
SMBJ54CA |
54.0 |
60.00 |
66.30 |
1 |
87.1 |
6.9 |
|
SMBJ58A |
SMBJ58CA |
58.0 |
64.40 |
71.20 |
1 |
93.6 |
6.5 |
|
SMBJ60A |
SMBJ60CA |
60.0 |
66.70 |
73.70 |
1 |
96.8 |
6.2 |
|
SMBJ64A |
SMBJ64CA |
64.0 |
71.10 |
78.60 |
1 |
103.0 |
5.9 |
|
SMBJ70A |
SMBJ70CA |
70.0 |
77.80 |
86.00 |
1 |
113.0 |
5.3 |
|
SMBJ75A |
SMBJ75CA |
75.0 |
83.30 |
92.10 |
1 |
121.0 |
5.0 |
|
SMBJ78A |
SMBJ78CA |
78.0 |
86.70 |
95.80 |
1 |
126.0 |
4.8 |
|
SMBJ85A |
SMBJ85CA |
85.0 |
94.40 |
104.00 |
1 |
137.0 |
4.4 |
|
SMBJ90A |
SMBJ90CA |
90.0 |
100.00 |
111.00 |
1 |
146.0 |
4.1 |
|
SMBJ100A |
SMBJ100CA |
100.0 |
111.00 |
123.00 |
1 |
162.0 |
3.7 |
|
SMBJ110A |
SMBJ110CA |
110.0 |
122.00 |
135.00 |
1 |
177.0 |
3.4 |
|
SMBJ120A |
SMBJ120CA |
120.0 |
133.00 |
147.00 |
1 |
193.0 |
3.1 |
|
SMBJ150A |
SMBJ150CA |
150.0 |
167.00 |
185.00 |
1 |
243.0 |
2.5 |
|
SMBJ170A |
SMBJ170CA |
170.0 |
189.00 |
209.00 |
1 |
275.0 |
2.2 |
