特点
瞬变电压抑制二极管,又称瞬变电压抑制器,简称TVS管.响应速度快(纳秒级)、瞬时吸收功率大(数百至数千瓦)、漏电流小(微安级)、导通电压精度高、箝位电压较易控制、体积小等。它对保护装置免遭静电、雷电、操作过电压、断路器电弧重燃等各种电磁波干扰十分有效，可有效地抑制共模、差模干扰，是微电子设备过电压精细保护的首选器件。

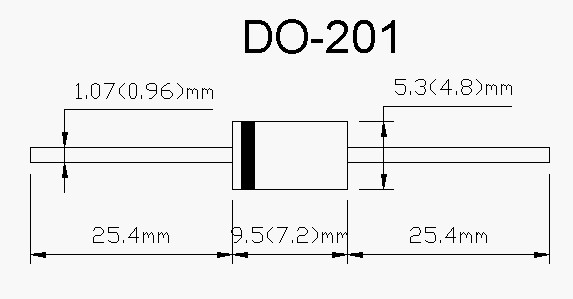

产品尺寸
参数对照表
|
型号 |
关断电压Vrwm(v) |
最小导通电压VBR（V）min@It |
最大导通电压VBR（V）max@It |
测试电流It(mA) |
最大钳位电压Vc(v)@Ipp |
冲击电流 IPP（A） | |
|
单向 |
双向 | ||||||
|
1.5KE6.8A |
1.5KE6.8CA |
5.80 |
6.45 |
7.14 |
10 |
10.5 |
144.8 |
|
1.5KE7.5A |
1.5KE7.5CA |
6.40 |
7.13 |
7.88 |
10 |
11.3 |
134.5 |
|
1.5KE8.2A |
1.5KE8.2CA |
7.02 |
7.79 |
8.61 |
10 |
12.1 |
125.6 |
|
1.5KE9.1A |
1.5KE9.1CA |
7.78 |
8.65 |
9.55 |
1 |
13.4 |
113.4 |
|
1.5KE10A |
1.5KE10CA |
8.55 |
9.50 |
10.50 |
1 |
14.5 |
104.8 |
|
1.5KE11A |
1.5KE11CA |
9.40 |
10.50 |
11.60 |
1 |
15.6 |
97.4 |
|
1.5KE12A |
1.5KE12CA |
10.20 |
11.40 |
12.60 |
1 |
16.7 |
91.0 |
|
1.5KE13A |
1.5KE13CA |
11.10 |
12.40 |
13.70 |
1 |
18.2 |
83.5 |
|
1.5KE15A |
1.5KE15CA |
12.80 |
14.30 |
15.80 |
1 |
21.2 |
71.7 |
|
1.5KE16A |
1.5KE16CA |
13.60 |
15.20 |
16.80 |
1 |
22.5 |
67.6 |
|
1.5KE18A |
1.5KE18CA |
15.30 |
17.10 |
18.90 |
1 |
25.2 |
60.3 |
|
1.5KE20A |
1.5KE20CA |
17.10 |
19.00 |
21.00 |
1 |
27.7 |
54.9 |
|
1.5KE22A |
1.5KE22CA |
18.80 |
20.90 |
23.10 |
1 |
30.6 |
49.7 |
|
1.5KE24A |
1.5KE24CA |
20.50 |
22.80 |
25.20 |
1 |
33.2 |
45.8 |
|
1.5KE27A |
1.5KE27CA |
23.10 |
25.70 |
28.40 |
1 |
37.5 |
40.5 |
|
1.5KE30A |
1.5KE30CA |
25.60 |
28.50 |
31.50 |
1 |
41.4 |
36.7 |
|
1.5KE33A |
1.5KE33CA |
28.20 |
31.40 |
34.70 |
1 |
45.7 |
33.3 |
|
1.5KE36A |
1.5KE36CA |
30.80 |
34.20 |
37.80 |
1 |
49.9 |
30.5 |
|
1.5KE39A |
1.5KE39CA |
33.30 |
37.10 |
41.00 |
1 |
53.9 |
28.2 |
|
1.5KE43A |
1.5KE43CA |
36.80 |
40.90 |
45.20 |
1 |
59.3 |
25.6 |
|
1.5KE47A |
1.5KE47CA |
40.20 |
44.70 |
49.40 |
1 |
64.8 |
23.5 |
|
1.5KE51A |
1.5KE51CA |
43.60 |
48.50 |
53.60 |
1 |
70.1 |
21.7 |
|
1.5KE56A |
1.5KE56CA |
47.80 |
53.20 |
58.80 |
1 |
77.0 |
19.7 |
|
1.5KE62A |
1.5KE62CA |
53.00 |
58.90 |
65.10 |
1 |
85.0 |
17.9 |
|
1.5KE68A |
1.5KE68CA |
58.10 |
64.60 |
71.40 |
1 |
92.0 |
16.5 |
|
1.5KE75A |
1.5KE75CA |
64.10 |
71.30 |
78.80 |
1 |
103.0 |
14.8 |
|
1.5KE82A |
1.5KE82CA |
70.10 |
77.90 |
86.10 |
1 |
113.0 |
13.5 |
|
1.5KE91A |
1.5KE91CA |
77.80 |
86.50 |
95.50 |
1 |
125.0 |
12.2 |
|
1.5KE100A |
1.5KE100CA |
85.50 |
95.00 |
105.00 |
1 |
137.0 |
11.1 |
|
1.5KE110A |
1.5KE110CA |
94.00 |
105.00 |
116.00 |
1 |
152.0 |
10.0 |
|
1.5KE120A |
1.5KE120CA |
102.00 |
114.00 |
126.00 |
1 |
165.0 |
9.2 |
|
1.5KE130A |
1.5KE130CA |
111.00 |
124.00 |
137.00 |
1 |
179.0 |
8.5 |
|
1.5KE150A |
1.5KE150CA |
128.00 |
143.00 |
158.00 |
1 |
207.0 |
7.3 |
|
1.5KE160A |
1.5KE160CA |
136.00 |
152.00 |
168.00 |
1 |
219.0 |
6.9 |
|
1.5KE170A |
1.5KE170CA |
145.00 |
162.00 |
179.00 |
1 |
234.0 |
6.5 |
|
1.5KE180A |
1.5KE180CA |
154.00 |
171.00 |
189.00 |
1 |
246.0 |
6.2 |
|
1.5KE200A |
1.5KE200CA |
171.00 |
190.00 |
210.00 |
1 |
274.0 |
5.5 |
|
1.5KE220A |
1.5KE220CA |
185.00 |
209.00 |
231.00 |
1 |
328.0 |
4.6 |
|
1.5KE250A |
1.5KE250CA |
214.00 |
237.00 |
263.00 |
1 |
344.0 |
4.4 |
|
1.5KE300A |
1.5KE300CA |
256.00 |
285.00 |
315.00 |
1 |
414.0 |
3.7 |
|
1.5KE350A |
1.5KE350CA |
300.00 |
332.00 |
368.00 |
1 |
482.0 |
3.2 |
|
1.5KE400A |
1.5KE400CA |
342.00 |
380.00 |
420.00 |
1 |
548.0 |
2.8 |
|
1.5KE440A |
1.5KE440CA |
376.00 |
418.00 |
462.00 |
1 |
602.0 |
2.5 |
